Tridonic LED module met extra lage inbouwdiepte
PRODUCTBESCHRIJVING
- Tridonic LED module voor wand- en plafondarmaturen
- Extra lage inbouwdiepte: vanaf 30 mm mogelijk
- Homogeen lichtbeeld dankzij LED’s met brede lichtbundel (150°)
- Groot bereik in lichtopbrengst: van 710 lm t/m 12.020 lm
- Efficiency: 143 lm/W – 180 lm/W (tp 45°C)

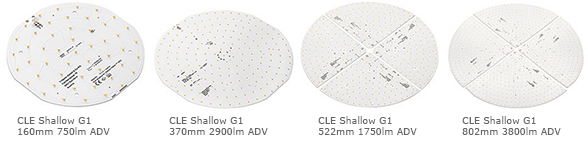

- 4 Beschikbare afmetingen voor armaturen van Ø 200, 400, 600 en 900 mm
- Kleurtolerantie MacAdam 3
- Kleurtemperatuur 3.000K en 4.000K
- CRI: > 80
- Lange levensduur: 50.000 branduren
- 5 Jaar garantie
- Zeer efficiënte systeemoplossing i.c.m. Tridonic LED drivers
- Zie datasheet voor meer informatie
Wij informeren u graag over bijpassende Tridonic LED drivers
Bestelinformatie
| Bestelinformatie | |
|---|---|
| Type | Artikelnummer |
| Tridonic CLE Shallow G1 160mm 750lm 830 ADV | 89602485 |
| Tridonic CLE Shallow G1 160mm 750lm 840 ADV | 89602486 |
| Tridonic CLE Shallow G1 370mm 2900lm 830 ADV | 89602487 |
| Tridonic CLE Shallow G1 370mm 2900lm 840 ADV | 89602488 |
| Tridonic CLE Shallow G1 522mm 1750lm 830 ADV | 89602489 |
| Tridonic CLE Shallow G1 522mm 1750lm 840 ADV | 89602490 |
| Tridonic CLE Shallow G1 802mm 3800lm 830 ADV | 89602491 |
| Tridonic CLE Shallow G1 802mm 3800lm 840 ADV | 89602492 |
Technische informatie
| Technische informatie | ||||
|---|---|---|---|---|
| Type | Stroom | Lichtopbrengst tp 45°C - 25°C | Verbruik tp 45°C | Forward Voltage tp 45°C - 25°C |
| Operating mode High Efficiency (HE) | ||||
| CLE Shallow G1 160mm 750lm 830 ADV | 150 mA | 710 - 730 lm | 4,1 Watt | 26,0 - 28,4 Vf |
| CLE Shallow G1 160mm 750lm 840 ADV | 150 mA | 730 - 750 lm | 4,1 Watt | 26,0 - 28,4 Vf |
| CLE Shallow G1 370mm 2900lm 830 ADV | 500 mA | 2.820 - 2.900 lm | 16,3 Watt | 31,3 - 34,1 Vf |
| CLE Shallow G1 370mm 2900lm 840 ADV | 500 mA | 2.910 - 3.000 lm | 16,3 Watt | 31,3 - 34,1 Vf |
| CLE Shallow G1 522mm 1750lm 830 ADV | 300 mA | 1.670 - 1.740 lm | 9,8 Watt | 31,6 - 34,5 Vf |
| CLE Shallow G1 522mm 1750lm 840 ADV | 300 mA | 1.740 - 1.800 lm | 9,8 Watt | 31,6 - 34,5 Vf |
| CLE Shallow G1 802mm 3800lm 830 ADV | 650 mA | 3.650 - 3.760 lm | 21,2 Watt | 31,5 - 34,4 Vf |
| CLE Shallow G1 802mm 3800lm 840 ADV | 650 mA | 3.780 - 3.900 lm | 21,2 Watt | 31,5 - 34,4 Vf |
| Operating mode Nominal Mode (NM) | ||||
| CLE Shallow G1 160mm 750lm 830 ADV | 350 mA | 1.600 - 1.650 lm | 10,0 Watt | 27,7 - 30,2 Vf |
| CLE Shallow G1 160mm 750lm 840 ADV | 350 mA | 1.650 - 1.700 lm | 10,0 Watt | 27,7 - 30,2 Vf |
| CLE Shallow G1 370mm 2900lm 830 ADV | 700 mA | 3.920 - 4.040 lm | 23,2 Watt | 32,0 - 35,0 Vf |
| CLE Shallow G1 370mm 2900lm 840 ADV | 700 mA | 4.060 - 4.180 lm | 23,2 Watt | 32,0 - 35,0 Vf |
| CLE Shallow G1 522mm 1750lm 830 ADV | 500 mA | 2.760 - 2.850 lm | 17,0 Watt | 32,9 - 35,9 Vf |
| CLE Shallow G1 522mm 1750lm 840 ADV | 500 mA | 2.860 - 2.940 lm | 17,0 Watt | 32,9 - 35,9 Vf |
| CLE Shallow G1 802mm 3800lm 830 ADV | 900 mA | 5.020 - 5.180 lm | 30,2 Watt | 32,3 - 35,3 Vf |
| CLE Shallow G1 802mm 3800lm 840 ADV | 900 mA | 5.200 - 5.360 lm | 30,2 Watt | 32,3 - 35,3 Vf |
| Operating mode High Output (HO) small range | ||||
| CLE Shallow G1 160mm 750lm 830 ADV | 500 mA | 2.200 - 2.290 lm | 14,9 W | 28.7 - 31,4 Vf |
| CLE Shallow G1 160mm 750lm 840 ADV | 500 mA | 2.300 - 2.370 lm | 14,9 W | 28.7 - 31,4 Vf |
| CLE Shallow G1 370mm 2900lm 830 ADV | 1.050 mA | 5.770 - 5.950 lm | 35,9 W | 33,0 - 36,1 Vf |
| CLE Shallow G1 370mm 2900lm 840 ADV | 1.050 mA | 5.980 - 6.160 lm | 35,9 W | 33,0 - 36,1 Vf |
| CLE Shallow G1 522mm 1750lm 830 ADV | 700 mA | 3.780 - 3.900 lm | 24,7 W | 34,0 - 37,1 Vf |
| CLE Shallow G1 522mm 1750lm 840 ADV | 700 mA | 3.910 - 4.030 lm | 24,7 W | 34,0 - 37,1 Vf |
| CLE Shallow G1 802mm 3800lm 830 ADV | 1.050 mA | 5.840 - 6.010 lm | 35,6 W | 32,7 - 35,7 Vf |
| CLE Shallow G1 802mm 3800lm 840 ADV | 1.050 mA | 6.040 - 6.220 lm | 35,6 W | 32,7 - 35,7 Vf |
| Operating mode High Output (HO) wide range | ||||
| CLE Shallow G1 160mm 750lm 830 ADV | 600 mA | 2.620 - 2.700 lm | 18,3 W | 29,4 - 32,1 Vf |
| CLE Shallow G1 160mm 750lm 840 ADV | 600 mA | 2.710 - 2.790 lm | 18,3 W | 29,4 - 32,1 Vf |
| CLE Shallow G1 370mm 2900lm 830 ADV | 1.900 mA | 9.970 - 10.270 lm | 49,3 W | 35,2 - 38,4 Vf |
| CLE Shallow G1 370mm 2900lm 840 ADV | 1.900 mA | 10.320 - 10.630 lm | 49,3 W | 35,2 - 38,4 Vf |
| CLE Shallow G1 522mm 1750lm 830 ADV | 950 mA | 4.980 - 5.130 lm | 34,7 W | 35,2 - 38,4 Vf |
| CLE Shallow G1 522mm 1750lm 840 ADV | 950 mA | 5.160 - 5.310 lm | 34,7 W | 35,2 - 38,4 Vf |
| CLE Shallow G1 802mm 3800lm 830 ADV | 2.150 mA | 11.270 - 11.610 lm | 78,6 W | 35,3 - 38,4 Vf |
| CLE Shallow G1 802mm 3800lm 840 ADV | 2.150 mA | 11.670 - 12.020 lm | 78,6 W | 35,3 - 38,4 Vf |
